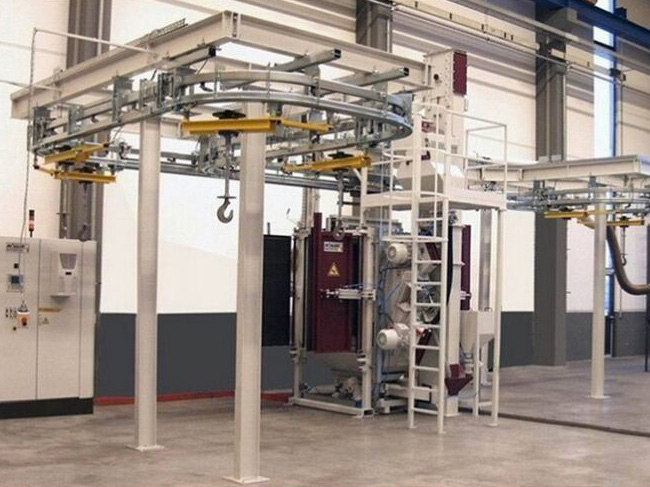

The hook shot blasting machine consists of a shot blasting and rust removal room, a bucket elevator, a separation equipment, a screw conveyor, a shot blasting machine program, a shot automatic control system, a hook walking track, hook system software, rotating equipment, roadbed, dust removal equipment, electrical control system, etc.

Shot blasting rust removal chamber is composed of a chamber body and a protective plate. The ash removal port is set on the rear inner wall. The shot blasting and rust removal chamber cover is a welded structure of thick steel plates and channel steel, which provides a sealed and spacious indoor space for steel shot blasting and rust removal. One side of the inner wall of the shot blasting and rust removal room is equipped with a shot blasting device to ensure comprehensive shot blasting and rust removal of the steel parts being removed. The area where the indoor body is immediately shot by the shot blasting machine is lined with imported cold-rolled Mn13 protective plates with a thickness of 12mm, which can be manufactured and used for more than 10 years in a single shift. Other regions use 63Mn board for safety protection. The protective plates are all fastened with safety protection screw caps, which is conducive to disassembly and replacement when necessary. The lower part of the chamber is arranged in a circular arc shape with thick steel plates, allowing the pellets to be injected into the spiral transporter at the bottom. The thick steel plate is also covered with protective plates for safety protection.

On the top of the spiral transporter, there is a steel leak plate, and on top of the leak plate, there is a wear-resistant rubber plate. When applied, the wear-resistant rubber plate should be laid on the left rear of the shot blasting machine to maintain the steel leakage plate below and increase its service life. The basic model of the machine is equipped with a manual discharge port method for manual service. The design concept of the machine is double door. The inside of the door is covered with wear-resistant rubber protective plates. The steel bending machine adopts hexagonal special nuts for clamping; There are foam plastic vulcanized rubber sealing strips around the door to seal the door reasonably; There is a ball groove below, where a small portion of the ball is stored in the compartment when opening or closing the door to prevent the ball from falling on the road and causing injury. Place an oil label on the door hinge at the entrance to facilitate quarterly lubrication of the rolling bearings inside the door leaf.

The bucket elevator of the hook type shot blasting machine is very important for the operation of the shot blasting cleaning machine. The steel ball recycling system of the hook type shot blasting machine. Hook type shot blasting machine refers to a suspended shot blasting machine. Rotating steel parts, shot blasting for rust removal, environmentally friendly.

The bucket elevator consists of a cycloidal pin reducer and motor shaft, upper, lower, left, and right rollers, transport tape, material bin, enclosed material cylinder, and tensioning equipment. The lower feeding port of the bucket elevator is connected to the screw conveyor, and the upper feeding port is connected to the pellet sand separation equipment. The bucket elevator cover is constructed with electric welding, with a beautiful and elegant appearance and good rigidity. There is a maintenance door on top and bottom of the bucket elevator cover, which can be used for inspection and replacement of the silo. Open the door cover on the lower blocking cover to inspect the lower transmission system and remove the bullet blockage at the bottom. The machine can be rotated using a flat belt. During the work process, the silo fixed on the transport tape lifts the ball at the bottom of the bucket machine, and then the ball is lifted to the top of the bucket machine under the drive of the bucket machine motor. By using filtering force to enter the ball sand, it is separated from the sand. There is a complete set of tensioning equipment under the bucket machine. When the drive belt loosens after a period of application, the adjustment foot bolts on both sides of the upper end of the bucket elevator can be adjusted to tighten the drive belt. The adjustment range is 150mm. When adjusting, pay attention to making the adjustment amount on both sides the same.
